Intro

I came across pyGAM a couple months ago, but found few examples online. Below is a more practical extension to the documentation found in the pyGAM homepage.

Generalized additive models are an extension of generalized linear models. They provide a modeling approach that combines powerful statistical learning with interpretability, smooth functions, and flexibility. As such, they are a solid addition to the data scientist’s toolbox.

This tutorial will not focus on the theory behind GAMs. For more information on that there is an amazing blog post by Kim Larsen here

Or for a much more in depth read check out Simon. N. Wood’s great book, “Generalized Additive Models: an Introduction in R” Some of the major development in GAMs has happened in the R front lately with the mgcv package by Simon N. Wood. At our company, we have been using GAMs with modeling success for structural modeling with machine learning, but needed a way to integrate it into our python-based “machine learning for production” framework.

Installation

Installation is simple:

pip install pygam

pyGAM also makes use of scikit-sparse which you can install via conda. Not doing so will result in a warning and potential problems with the slowing down of optimization for models with monotonicity/convexity penalties.

Classification Example

Let’s go through a classification example…

We import LogisticGAM to begin the classification training process, and load_breast_cancer for the data. This data contains 569 observations and 30 features. The target variable in this case is whether the tumor of malignant or benign, and the features are several measurements of the tumor. For showcasing purposes, we keep the first 6 features only.

import pandas as pd
from pygam import LogisticGAM
from sklearn.datasets import load_breast_cancer
#load the breast cancer data set
data = load_breast_cancer()
#keep first 6 features only
df = pd.DataFrame(data.data, columns=data.feature_names)[['mean radius', 'mean texture', 'mean perimeter', 'mean area','mean smoothness', 'mean compactness']]
target_df = pd.Series(data.target)
df.describe()

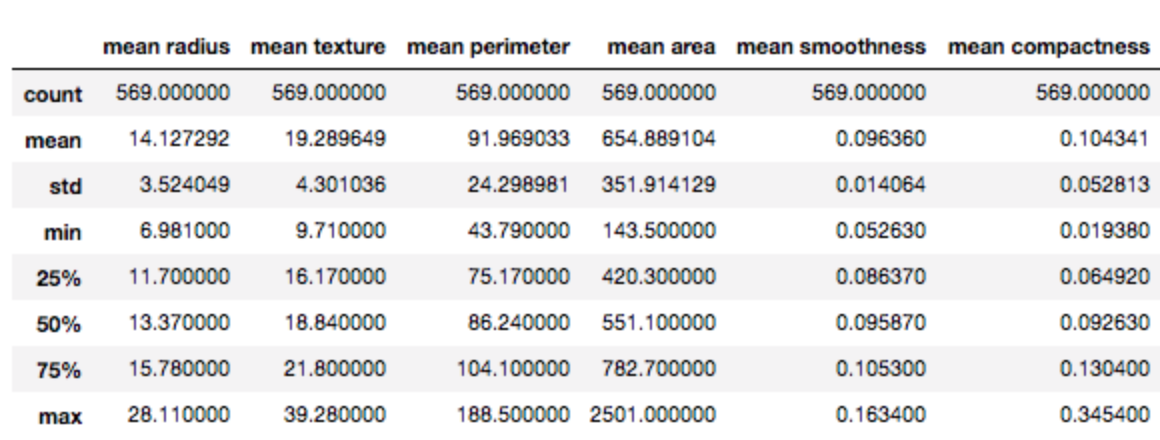

Description of sample classification data

Building the model

Since this is a classification problem, we want to make sure we use pyGam’s LogisticGAM() function.

X = df[['mean radius', 'mean texture', 'mean perimeter', 'mean area','mean smoothness', 'mean compactness']]
y = target_df
#Fit a model with the default parameters
gam = LogisticGAM().fit(X, y)

The summary() function provides a statistical summary of the model. In the diagnostics below, we can see statistical metrics such as AIC, UBRE, log likelihood, and pseudo-R² measures.

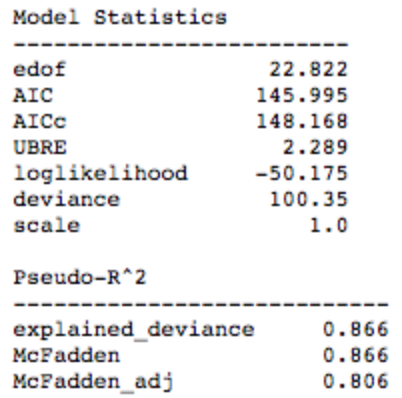

Model summary

To get the training accuracy we simply run

gam.accuracy(X, y)

And we get a .961335676625659 accuracy right off the bat. Obviously, this is training accuracy so there still needs to be a validation step to make sure we are not overfitting a model here.

One of the nice things about GAMs is that their additive nature allows us to explore and interpret individual features by holding others at their mean. The snippet of code below shows these plots for the features included in the trained model. generate_X_grid helps us build a grid for nice plotting.

from pygam.utils import generate_X_grid
XX = generate_X_grid(gam)
plt.rcParams['figure.figsize'] = (28, 8)
fig, axs = plt.subplots(1, len(data.feature_names[0:6]))
titles = data.feature_names
for i, ax in enumerate(axs):
    pdep, confi = gam.partial_dependence(XX, feature=i+1, width=.95)
    ax.plot(XX[:, i], pdep)
    ax.plot(XX[:, i], confi[0][:, 0], c='grey', ls='--')
    ax.plot(XX[:, i], confi[0][:, 1], c='grey', ls='--')
    ax.set_title(titles[i])
plt.show()

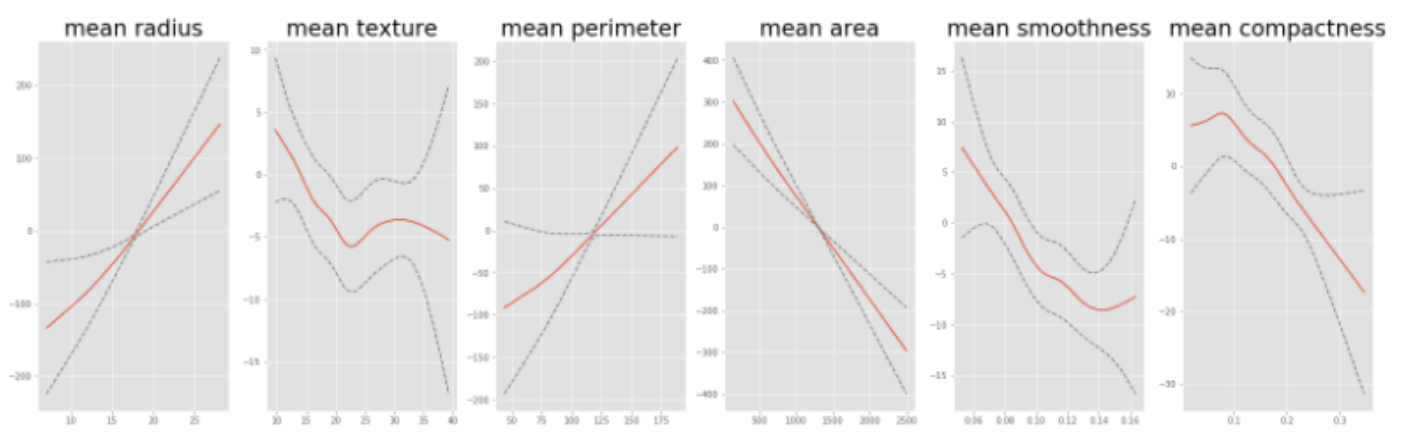

Partial dependency plots with confidence intervals

We can already see some very interesting results. It is clear that some features have a fairly simple linear relationship with the target variable. There are about three features that seem to have strong non-linear relationships though. We will want to combine the interpretability of these plots, and the power to prevent over fitting in GAMs to come up with a model that generalizes well to a holdout set of data.

Partial dependency plots are extremely useful because they are highly interpretable and easy to understand. For example at first examination we can tell that there is a very strong relationship between the mean radius of the tumor and the response variable. The bigger the radius of the tumor, the more likely it is to be malignant. Other features like the mean texture are harder to decipher, and we can already infer that we might want to make that a smoother line (we walk through smoothing parameters in the next section).

Tuning Smoothness and Penalties

This is where the functionality of pyGAM begins to really shine through. We can choose to build a grid for parameter tuning or we can use intuition and domain expertise to find optimal smoothing penalties for the model.

Main parameters to keep in mind are:

n_splines , lam , and constraints

n_splines refers to the number of splines to use in each of the smooth function that is going to be fitted.

lam is the penalization term that is multiplied to the second derivative in the overall objective function.

constraints is a list of constraints that allows the user to specify whether a function should have a monotonically constraint. This needs to be one of:

  • convex

  • concave

  • monotonic_inc

  • monotonic_dec

  • circular

  • none

The default parameters that are being used in the model presented above are the following: n_splines = 25, lam = 0.6, and constraints = None.

So let’s play around with n_splines. Let’s say for example we think mean texture is too “un-smooth” at the moment. We change parameter list to the following: (Note that another cool thing about pyGAM is that we can specify one single value of lambda and it will be copied to all of the functions. Otherwise, we can specify each one in a list…)

lambda_ = 0.6
n_splines = [25, 6, 25, 25, 6, 4]
constraints = None
gam = LogisticGAM(constraints=constraints,
          lam=lambda_,
         n_splines=n_splines).fit(X, y)

Which changes our training accuracy to 0.9507

And now the partial dependency plots look like so:

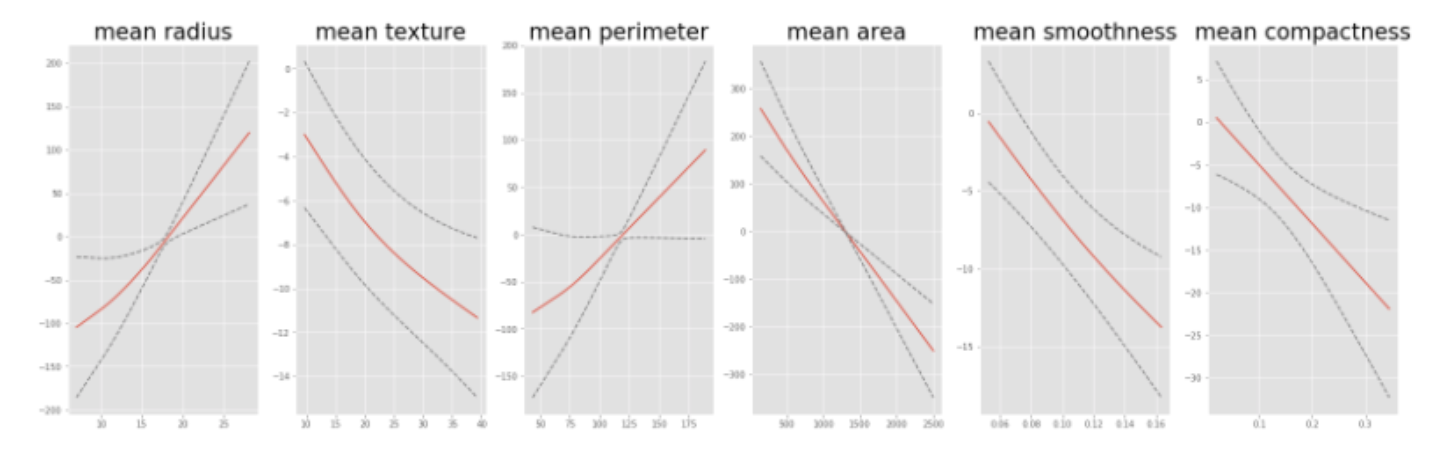

Mean texture, mean smoothness, and mean compactness changed

The drop in accuracy tells us that there is some information we are not capturing by smoothing the mean texture estimator that much, but it highlights how the analyst can encode intuition into the modeling process.

Keep in mind that n_splines is only one parameter to change. Lambda controls how much we penalize ‘wiggliness’, so even if we keep a large value for n_splines we could get a straight line if lambda is large enough. Tuning these can be labor intensive, but there is an automated way to do this in pyGAM.

Grid search with pyGAM

The gridsearch() function creates a grid to search over smoothing parameters. This is one of the coolest functionalities in pyGAM because it is very easy to create a custom grid search. One can easily add parameters and ranges. For example, the default arguments are a dictionary of possible lambdas to create a grid search {'lam':np.logspace(-3,3,11)}

And just like the default argument is shows, we can add more and more arguments to the function and thus create a custom grid search.

gam = LogisticGAM().gridsearch(X, y)

Generalizing a GAM

Using a holdout set is the best way to balance bias-variance trade off in models. GAMs do a very good job at allowing the analyst to directly control over fitting in a statistical learning model.

pyGAM really plays nice with the sklearn workflow, so once it is installed it’s basically like fitting a sklearn model.

We can split the data just like we usually would:

import numpy as np
from sklearn.model_selection import train_test_split
X_train, X_test, y_train, y_test = train_test_split(X, y, test_size=0.33, random_state=42)
gam = LogisticGAM().gridsearch(X_train, y_train)

Predict classes or probabilities and use sklearn metrics for accuracy;

from sklearn.metrics import accuracy_score
from sklearn.metrics import log_loss
predictions = gam.predict(X_test)
print("Accuracy: {} ".format(accuracy_score(y_test, predictions)))
probas = gam.predict_proba(X_test)
print("Log Loss: {} ".format(log_loss(y_test, probas)))

Accuracy: 0.96 Log Loss: 0.13

Let’s try a model that better generalizes. To do so, we can reduce the number of splines and see how the holdout set errors turn out.

lambda_ = [0.6, 0.6, 0.6, 0.6, 0.6, 0.6]
n_splines = [4, 14, 4, 6, 12, 12]
constraints = [None, None, None, None, None, None]
X_train, X_test, y_train, y_test = train_test_split(X, y, test_size=0.33, random_state=42)
gam = LogisticGAM(constraints=constraints,
                  lam=lambda_,
                 n_splines=n_splines).train(X_train, y_train)
predictions = gam.predict(X_test)
print("Accuracy: {} ".format(accuracy_score(y_test, predictions)))
probas = gam.predict_proba(X_test)
print("Log Loss: {} ".format(log_loss(y_test, probas)))

and now we have:

Accuracy: 0.97 Log Loss: 0.09

Regression

Switching to a regression context is simple:

from sklearn.datasets import load_boston
boston = load_boston()
df = pd.DataFrame(boston.data, columns=boston.feature_names)
target_df = pd.Series(boston.target)
df.head()

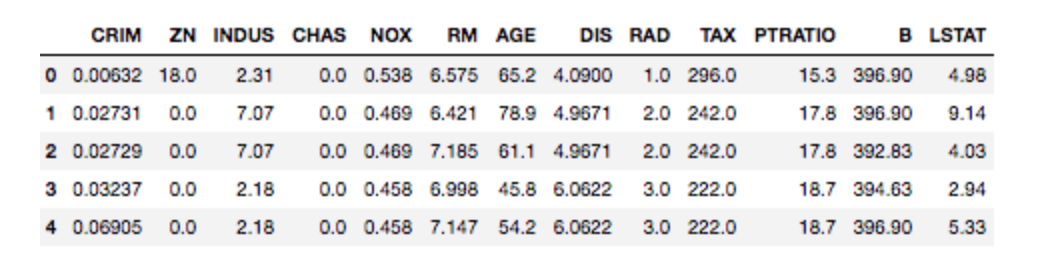

Data for regression problem

X = df
y = target_df
gam = LinearGAM(n_splines=10).gridsearch(X, y)
gam.summary()

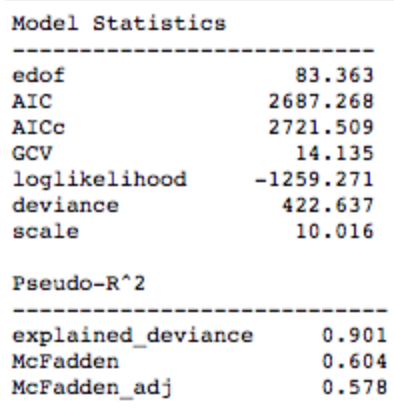

Regression GAM summary

And we can similarly plot the feature dependencies:

XX = generate_X_grid(gam)
plt.rcParams['figure.figsize'] = (28, 8)
fig, axs = plt.subplots(1, len(boston.feature_names[0:6]))
titles = boston.feature_names
for i, ax in enumerate(axs):
    pdep, confi = gam.partial_dependence(XX, feature=i+1, width=.95)
    ax.plot(XX[:, i], pdep)
    ax.plot(XX[:, i], confi[0][:, 0], c='grey', ls='--')
    ax.plot(XX[:, i], confi[0][:, 1], c='grey', ls='--')
    ax.set_title(titles[i],fontsize=26)
plt.show()

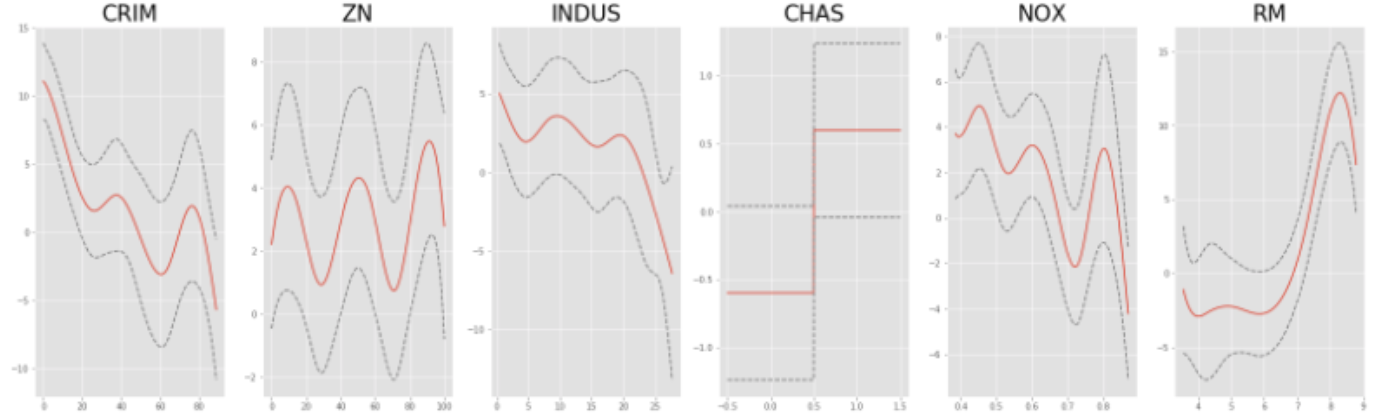

Regression partial dependency plots

There are many more features and knobs to turn when building a GAM. Stay tuned for the advanced tutorial on further generalizing a GAM, CV for feature and smoothness selection, residual diagnostics, and more.

Some extra information received from the Medium.com article comments section:

You can fit interaction terms on features 0 and 1 with the code below:

from pygam import LinearGAM, te
from pygam.datasets import toy_interaction
X, y = toy_interaction()
gam = LinearGAM(te(0,1)).fit(X, y)
gam.summary()
